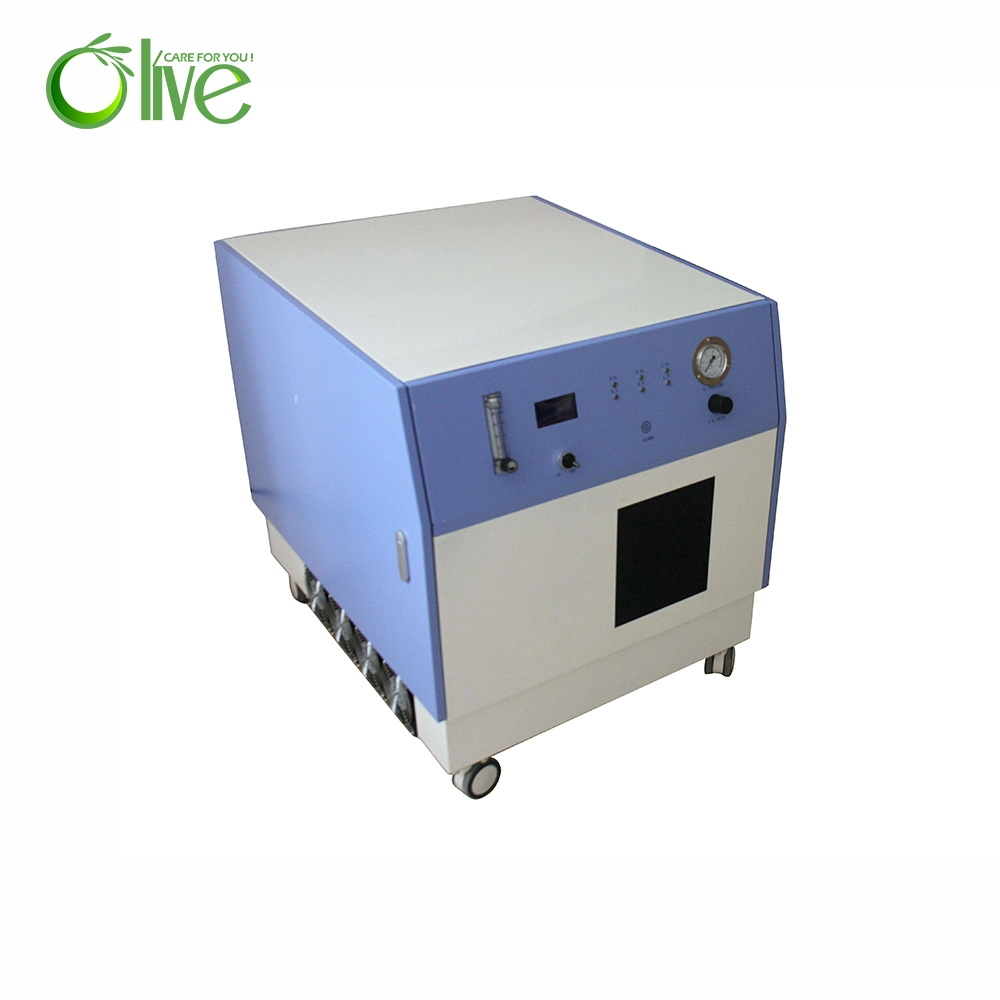

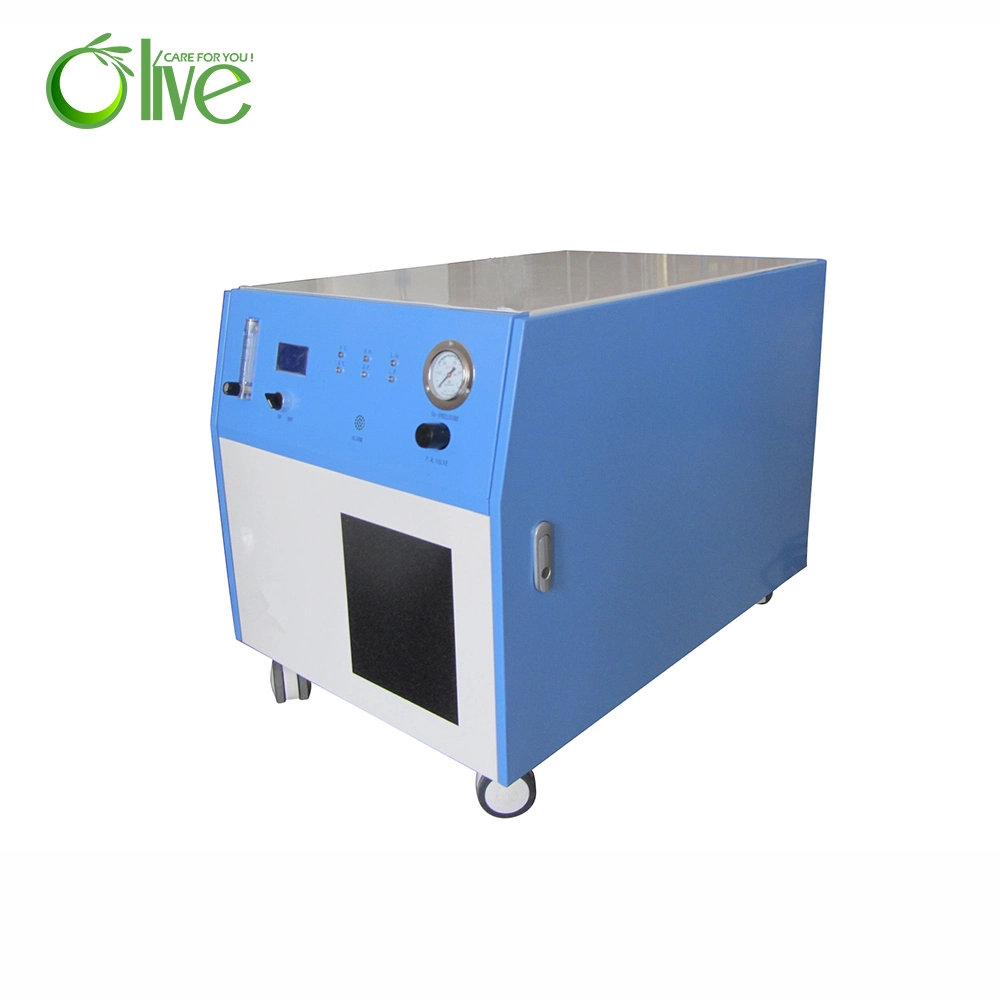

Kuwait 10L Continuous Flow High Pressure Fish Farming Oxygen Concentrator

 Kuwait 10l Continuous Flow High Pressure Oxygen Concentrator For Fish Farming    ModelOLV-20Purity Oxygen≥ 90%±3%(1LPM)VoltageAC220V±22V,50Hz±1Hz/AC110V±15V,60Hz±1HzSound level less than 60dbOutput Pressure0.04-0.07MpaNet weight77KGGuarantee12 monthsProduct Des

Featured Products

Kuwait 10l Continuous Flow High Pressure Oxygen Concentrator For Fish Farming
Kuwait 10L Continuous Flow High Pressure Oxygen Concentrator for Fish Farming
Purity Oxygen≥ 90%±3%(1LPM)
Sound level less than 60db
Output Pressure0.04-0.07Mpa
Net weight77KG
Guarantee12 months
Product Description
The separation air of aquaculture oxygen generator mainly consists of two adsorption towers filled with a full-scale sieve. Under normal temperature conditions, the compressed air is filtered, and after the purification process such as water drying, it enters the adsorption tower, and nitrogen in the air in the adsorption tower is used. Adsorption by molecular sieves allows oxygen to be enriched in the gas phase, exits the outlet for storage in an oxygen buffer tank, and the adsorbed molecular sieve in the other column is rapidly decompressed, the adsorbed components are resolved, and the two columns alternate By recycling, cheap oxygen with a purity of >90% can be obtained. The automatic valve switching of the entire system is controlled automatically by a computer.
Kuwait 10L Continuous Flow High Pressure Oxygen Concentrator for Fish Farming
Working principle
After the air is compressed by the air compressor, it is dusted, degreased, dried, and then entered the air tank. After passing through the air inlet valve and the left air inlet valve, it enters the left adsorption tower. The pressure of the tower rises, and the nitrogen molecules in the compressed air are adsorbed by the zeolite. Molecular sieve adsorption, the unadsorbed oxygen passes through the adsorption bed, enters the oxygen storage tank through the left production valve and the oxygen production valve. This process is called left suction and lasts for tens of seconds. After the left suction process is completed, the left adsorption tower and the right adsorption tower are connected through a pressure equalizing valve, so that the pressures of the two towers are equalized. This process is called pressure equalization and the duration is 3 to 5 seconds. After the pressure is equalized, the compressed air enters the right adsorption tower through the air inlet valve and the right inlet valve. The nitrogen molecules in the compressed air are adsorbed on the zeolite molecular sieve. The enriched oxygen passes through the right gas valve and the oxygen gas valve to enter the oxygen storage tank. Cans, this process is called right suction and lasts for tens of seconds. At the same time, the oxygen adsorbed by the zeolite molecular sieve in the left adsorption tower is released to the atmosphere through the left exhaust valve and decompressed, and this process is called desorption. In contrast, when the left tower is adsorbed, the right tower is also desorbing. In order to completely release the nitrogen released from the reduced pressure in the molecular sieve to the atmosphere, the oxygen is purged through a normally-opening blowback valve to the desorption adsorption tower and the nitrogen in the tower is blown out of the adsorption tower. This process is called backblowing, and it is simultaneous with desorption. After the right suction is completed, the pressure equalization process is performed, and then the process is switched to the left suction process and the process continues until the high purity product oxygen is continuously produced.
         Please Contact Me To Check The Price And Product Video

Three shipping method for you choose
MethodShipping companyShipping timeServiceAdvantageSuit for
By ExpressDHL,UPS, TNT, FEDEX5-7 daysDoor to door serviceFast, Simple.Sample order
(1-5 sets)
By AirmailAll kinds of airline4-5 daysAirport to airport service. You have to do custom clearance and pick up order at airport Low shipping cost, fastOrder more than 45kg
By seaSeaport: Shanghai, Shenzhen, Guangzhou, Tianjing,ShangdongAbout 30 daysSeaport to seaport service.You have to do custom clearance and pick up order at seaportVery lower shipping costBig quantity order, more than 30 sets.

 Company introduction

Zhengzhou Olive Electronic Technology Co.,ltd, established in 2006, is a rapid growing enterprise who integrate the production and marketing of oxygen concentrator and related healthcare products. After 12 years' efforts and development, now we have become one of the leading oxygen concentrator manufacturers and suppliers in China. We are always keeping very kind relationship with many strong medical factories and research institutes in China. We have been enjoy high reputation in medical health care market domestically and internationally.

Kuwait 10L Continuous Flow High Pressure Oxygen Concentrator for Fish Farming

Our factory focus on produce most kinds of oxygen concentrators in China, which includes the home medical use oxygen concentrator, the portable oxygen concentrator, and the high flow oxygen concentrator,. With professional manufacturing plants, we can do the OEM for customers as required. The products we are producing are almost covering most of the oxygen concentrators which can be manufactured in China.

Kuwait 10L Continuous Flow High Pressure Oxygen Concentrator for Fish Farming

    Olive have an special professional registration department, which in charge of domestic registration and oversea registration. We can help our current of potential customers to do the registration work. our factory implements ISO 13485 strictly, all of our products are in accord with medical CE. And we have a good relation with domestic famous institute who can provide us with authoritative medical analysis and authorization report. Quality and Service are always top concern in Olive. We provide full set of service, including date and samples, which are available on request.

Kuwait 10L Continuous Flow High Pressure Oxygen Concentrator for Fish Farming

     Quality product performance and good reputation, our products are not only successful sales in China, and       have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.

Kuwait 10L Continuous Flow High Pressure Oxygen Concentrator for Fish Farming

Olive 's mission is "Create a platform to achieve self-worth! Focus on products and services and focus on the health and beauty of global users." and our Tenet is "A group of people with dreams, do meaningful things, bloom wonderful life !"We are always trying our best to offer the best services and the most competitive prices with high quality goods for our customer. It's the way we with our customers and the market.Given chance and full space, we would show you all of our advantages and let's grow up together. I'm sure we can establish long-term and friendly business relationship with your esteemed company because of your trust and our excellent service.
